Run the application

~5 minutesTemporal beginnerHands-on tutorial

Now that you understand the Workflow and Activities, run the application. You'll start a local Temporal Service, launch a Worker, then submit a Workflow Execution request.

Start a local Temporal Service

Run the following command to start the Temporal Service with a persistent database file and the Web UI on port 8080:

temporal server start-dev --db-filename temporal.db --ui-port 8080

The --db-filename option ensures records persist when you restart the service, as they would in a production deployment. Be sure to specify the same path each time.

Launch a Worker

Open a new terminal and change to the project directory:

cd money-transfer-project-template-ruby

Launch a Worker by running:

bundle exec ruby worker.rb

You'll see:

Starting Worker (press Ctrl+C to exit)

The Worker is now polling the Task Queue, but no Workflow Execution requests have been submitted yet. Here's how the Worker is configured:

worker.rb
require_relative 'activities'
require_relative 'shared'
require_relative 'workflow'
require 'logger'
require 'temporalio/client'
require 'temporalio/worker'

client = Temporalio::Client.connect(
  'localhost:7233',
  'default',
  logger: Logger.new($stdout, level: Logger::INFO)
)

worker = Temporalio::Worker.new(
  client:,
  task_queue: MoneyTransfer::TASK_QUEUE_NAME,
  workflows: [MoneyTransfer::MoneyTransferWorkflow],
  activities: [MoneyTransfer::BankActivities::Withdraw,
               MoneyTransfer::BankActivities::Deposit,
               MoneyTransfer::BankActivities::Refund]
)

puts 'Starting Worker (press Ctrl+C to exit)'
worker.run(shutdown_signals: ['SIGINT'])

Start the Workflow Execution

Open another terminal, change to the project directory, and submit a Workflow Execution request:

bundle exec ruby starter.rb

The starter.rb program connects to the Temporal Service, submits the request, and waits for the result:

starter.rb
require_relative 'shared'
require_relative 'workflow'
require 'securerandom'
require 'temporalio/client'

client = Temporalio::Client.connect('localhost:7233', 'default')

details = MoneyTransfer::TransferDetails.new('A1001', 'B2002', 100, SecureRandom.uuid)
details.source_account = ARGV[0] if ARGV.length >= 1
details.target_account = ARGV[1] if ARGV.length >= 2
details.amount = ARGV[2].to_i if ARGV.length >= 3
details.reference_id = ARGV[3] if ARGV.length >= 4

handle = client.start_workflow(
  MoneyTransfer::MoneyTransferWorkflow,
  details,
  id: "moneytransfer-#{details.reference_id}",
  task_queue: MoneyTransfer::TASK_QUEUE_NAME
)

puts "Initiated transfer of $#{details.amount} from #{details.source_account} to #{details.target_account}"
puts "Workflow ID: #{handle.id}"

begin
  puts "Workflow result: #{handle.result}"
rescue Temporalio::Error::RPCError
  puts 'Temporal Service unavailable while awaiting result'
  retry
end

You'll see output indicating that the transfer was initiated and the Workflow completed:

Initiated transfer of $100 from A1001 to B2002
Workflow ID: moneytransfer-...
Workflow result: Transfer complete (transaction IDs: OKW-100-A1001, OKD-100-B2002)

View the state in the Web UI

Visit the Temporal Web UI where you'll see your Workflow listed:

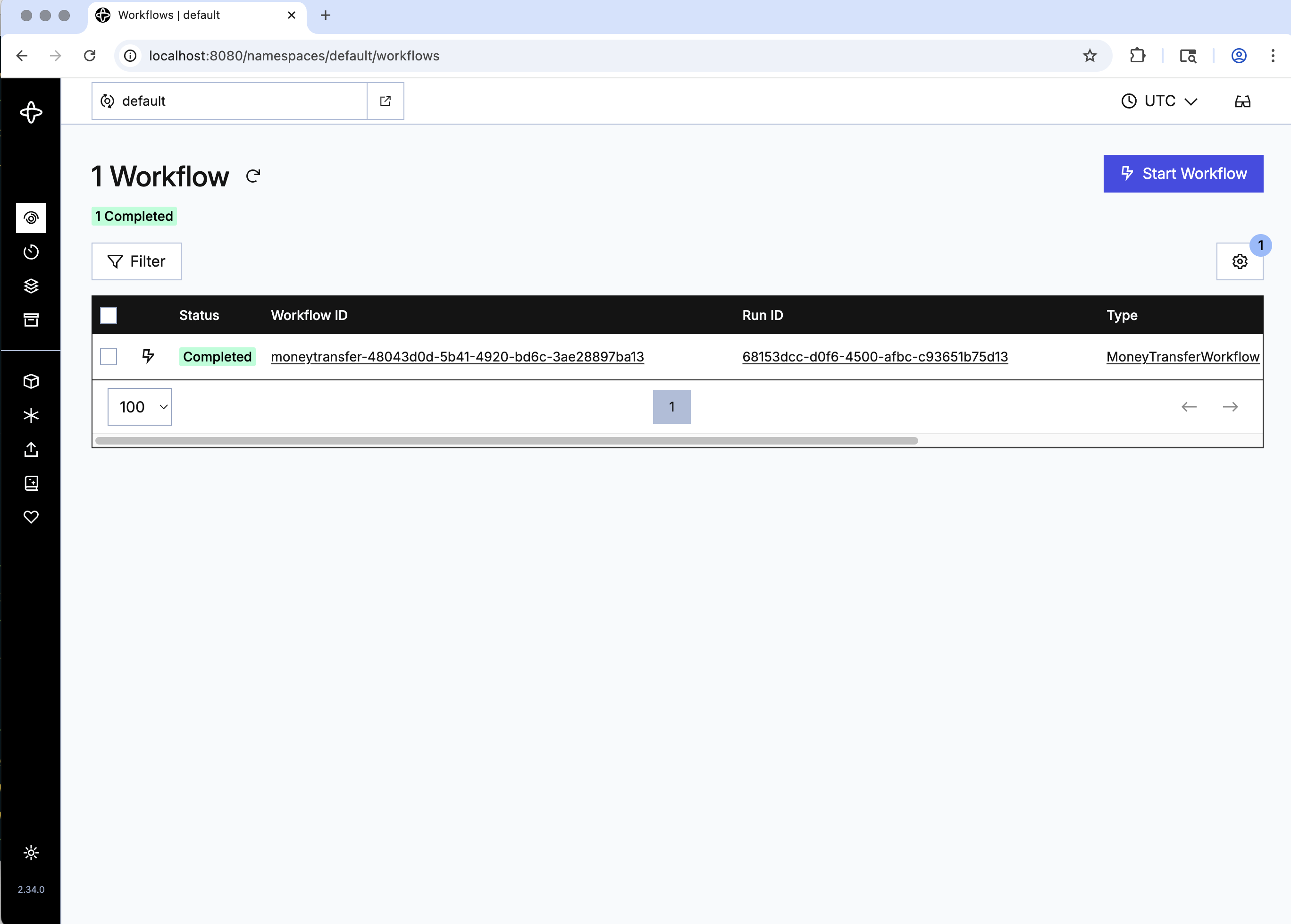

The Workflow listed in the main page

Click the Workflow ID to see details, inputs, attempts, and history:

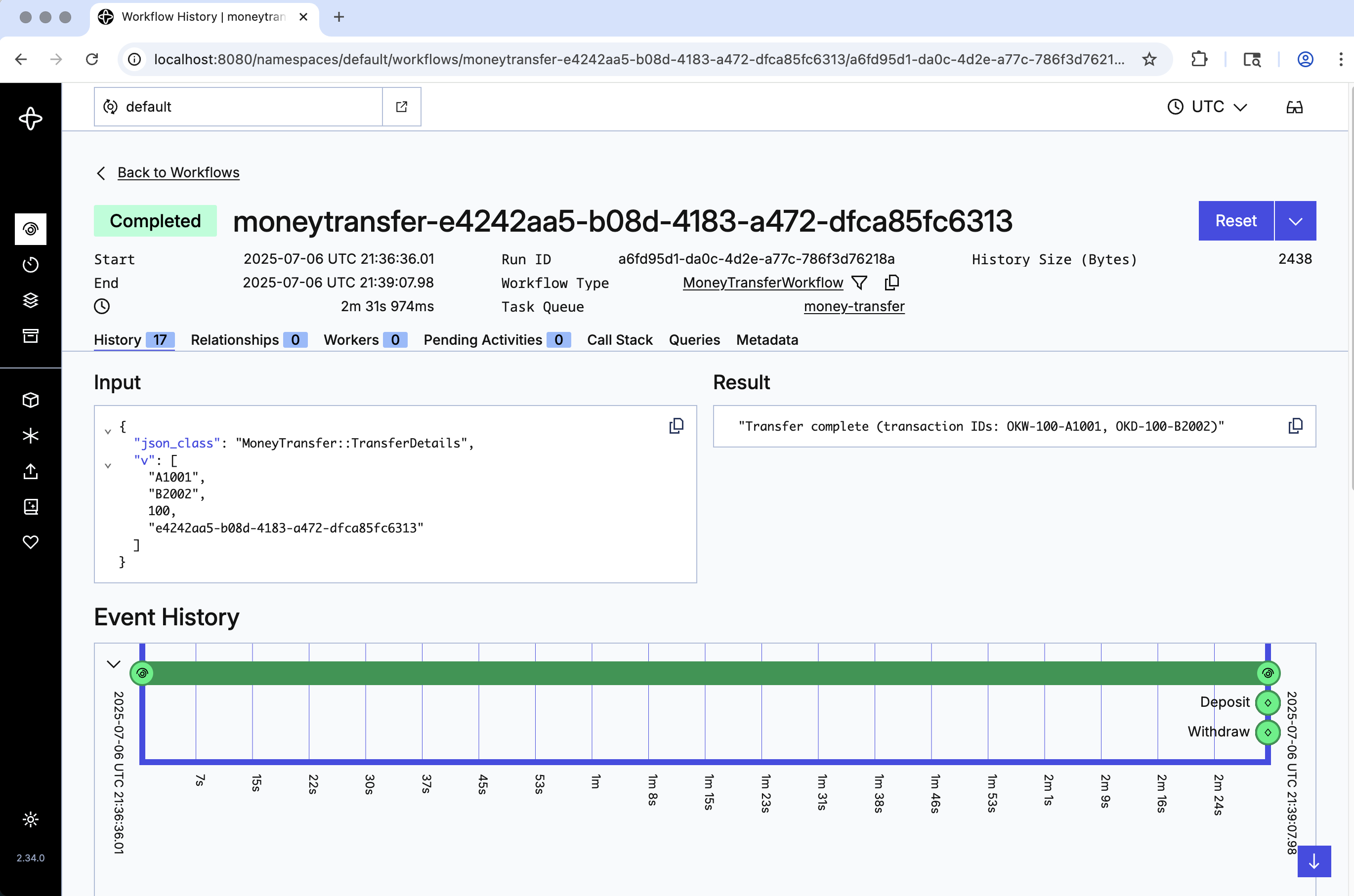

Workflow completed view

You just ran a Temporal Workflow application and saw how Workflows, Activities, and Workers interact. Next you'll explore how Temporal handles failures.

Previous: chapter 1Understand the application Next: chapter 3 Simulate failures
